T490 ELN D.50-3-MMT08-05
Indexable End Mill; 1/2″ Dia. × 0.181″ LOC × 0.48″ Shank Dia. × 0.9″ OAL ; 3 FL ; 90 Degrees

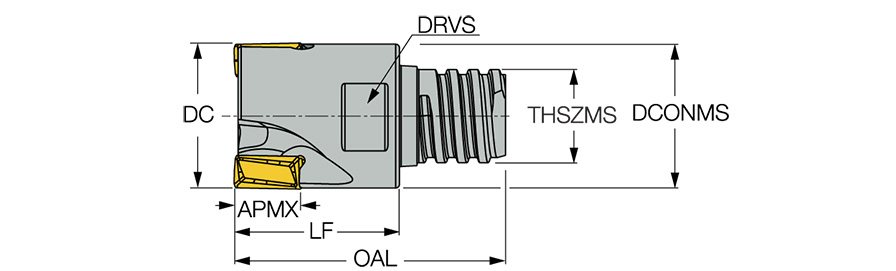

| Cutting Diameter (DC/DCX) | 1/2″ | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 1/2″ | Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 0.394″ |
| Depth of Cut Maximum (APMX) | 0.181″ | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 0.9″ | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 0.9 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | T490 LNMT 0502PNR-RD | Body Material | Steel |
| Functional Length (LF) | 0.6″ | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features

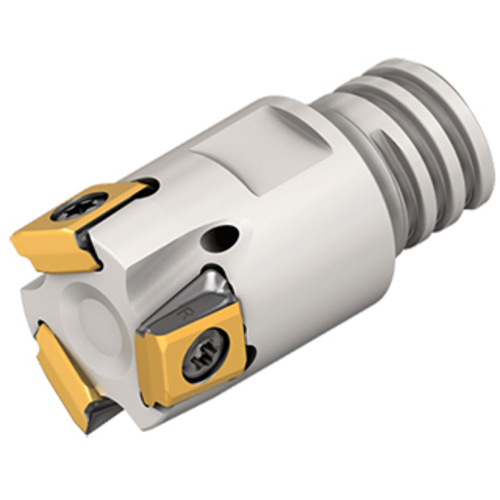

| Family Description | HELITANG, 90° endmills with a MULTI-MASTER threaded adaptation carrying T490 LNMT/LNHT 08... tangentially clamped inserts with 4 helical, 8 mm long cutting edges. | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection |
Shipping Info
Package Weight
63
