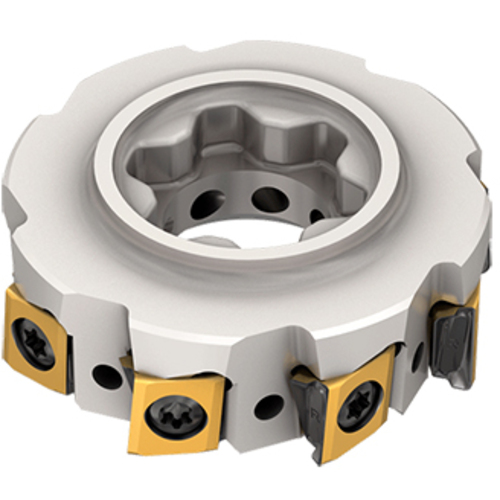

T490 FM D032-08-SP17-05
Indexable Face Mill; 1.26″ Dia. × 0.669″ Shank Dia. × 0.413″ OAL × 0.1811″ LOC ; 8 Inserts ; 90 Degrees

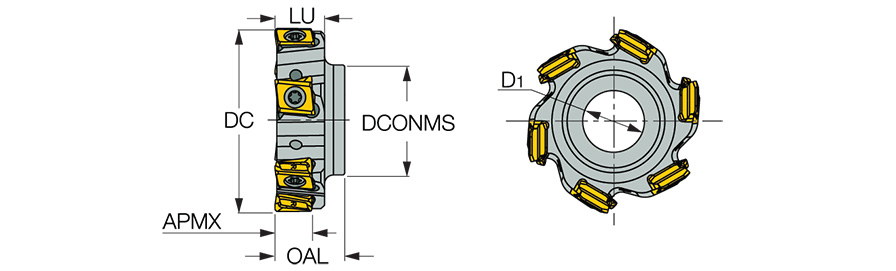

| Cutting Diameter (DC/DCX) | 1.26″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1.26″ | Usable Length (LU) | 0.2657″ |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.1811″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.669″ | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 0.413″ | Measurement Type | Inch |
| Arbor Style | SP17 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Master Insert Identification (MIID) | T490 LNMT 0502PNR-RD | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° Face Mills with a SP Connection Carrying Tangentially Clamped Inserts with 4 Helical Cutting Edges | Country of Origin | Israel |
| Remarks | For alternative torx hand driver click on More Info. |
Shipping Info
Package Weight
76
