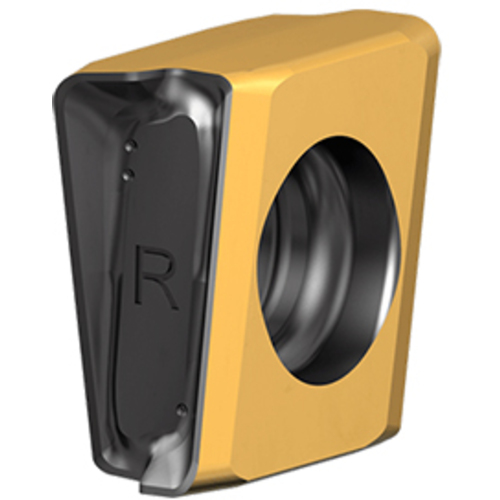

T490 LNMT 0502PNR-RD IC5600
| Applicable Material | | Steel | | Coating | TiCN+Al2O3 |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Grade | IC5600 |

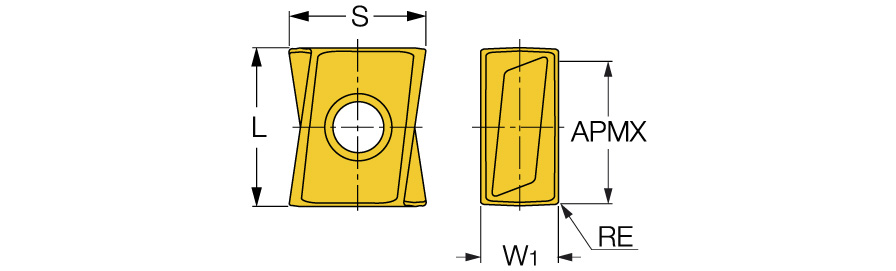

| Insert Length (INSL) | 0.197″ | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Corner Radius (RE) | 0.0158″ | Tool Type | Mill Tangential Inserts |
| Depth of Cut Maximum (APMX) | 0.181″ | Minimum Feed per Tooth (fz(min)) | 0.0032 ″/tooth |
| Insert Width (W1) | 0.091″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.209″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
Product Features
| Family Description | HELITANG - Tangentially clamped inserts with 4 helical cutting edges. The unique pocket design prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.8
