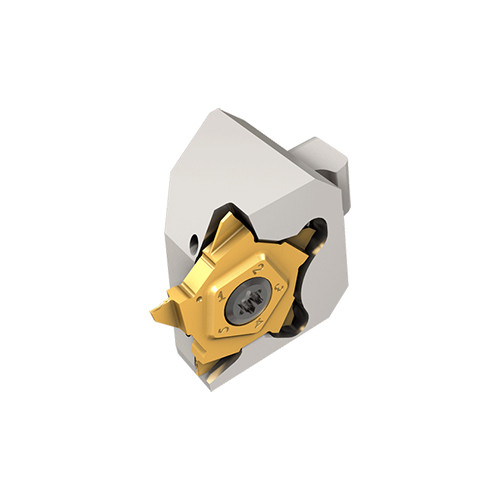

NQCH16-PCHR24-JHP
Parting Off Holder; 1.37″ OAL × 0.02″ CW Min. × 0.126″ CW Max. × 0.906″ OAH ; Steel

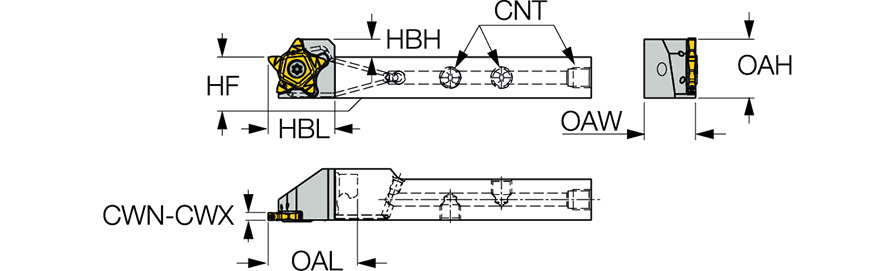

| Cutting Width Minimum (CWN) | 0.02″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.126″ | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 1.37″ | Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 1.024″ | Measurement Type | Inch |
| Overall Height (OAH) | 0.906″ | Head Bottom Offset Height (HBH) | 0.276″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 1.024″ |
Product Features
| Family Description | Screw lock JETCUT modular heads carrying PENTA inserts for grooving, parting, and recessing on Swiss-Type machines. | Country of Origin | Israel |
| Remarks | For more details click on More Info |
Shipping Info
Package Weight
0.165
