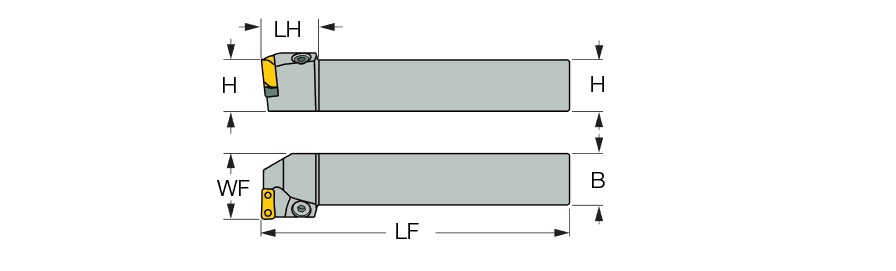

PLFNR 2525M-15 TANG
| Shank Height (H) | 25 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Cutting Position | External |
| Head Length (LH) | 28 mm | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | LNMX 1506..L/R | Style | SCLCL08-3A |
| Application | | Ext. Tangential 93°Face Approa | | Insert Style | 150mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
Product Features
| Family Description | Lever lock holders with tangential LNMX inserts for facing and longitudinal heavy turning. | Country of Origin | Israel |
| Remarks | Right-hand insert and seat for left-hand holder Left-hand insert and seat for right-hand holder ap max for longitudinal turning is 5.8mm |
Shipping Info
Package Weight
1.720
