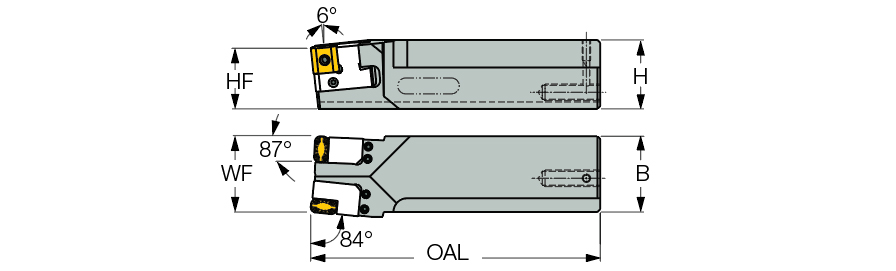

PRWL 50-55
| Shank Height (H) | 50 mm | Body Material | Steel |
| Shank Width (B) | 55 mm | Cutting Position | External |
| Overall Length (OAL) | 210 mm | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Length (LF) | 4″ | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 210 mm | Measurement Type | Metric |
| Functional Width (WF) | 5/8″ | Style | SCLCL08-3A |
| Cutting Direction (HAND) | Left Hand | Insert Style | 210mm |
Product Features

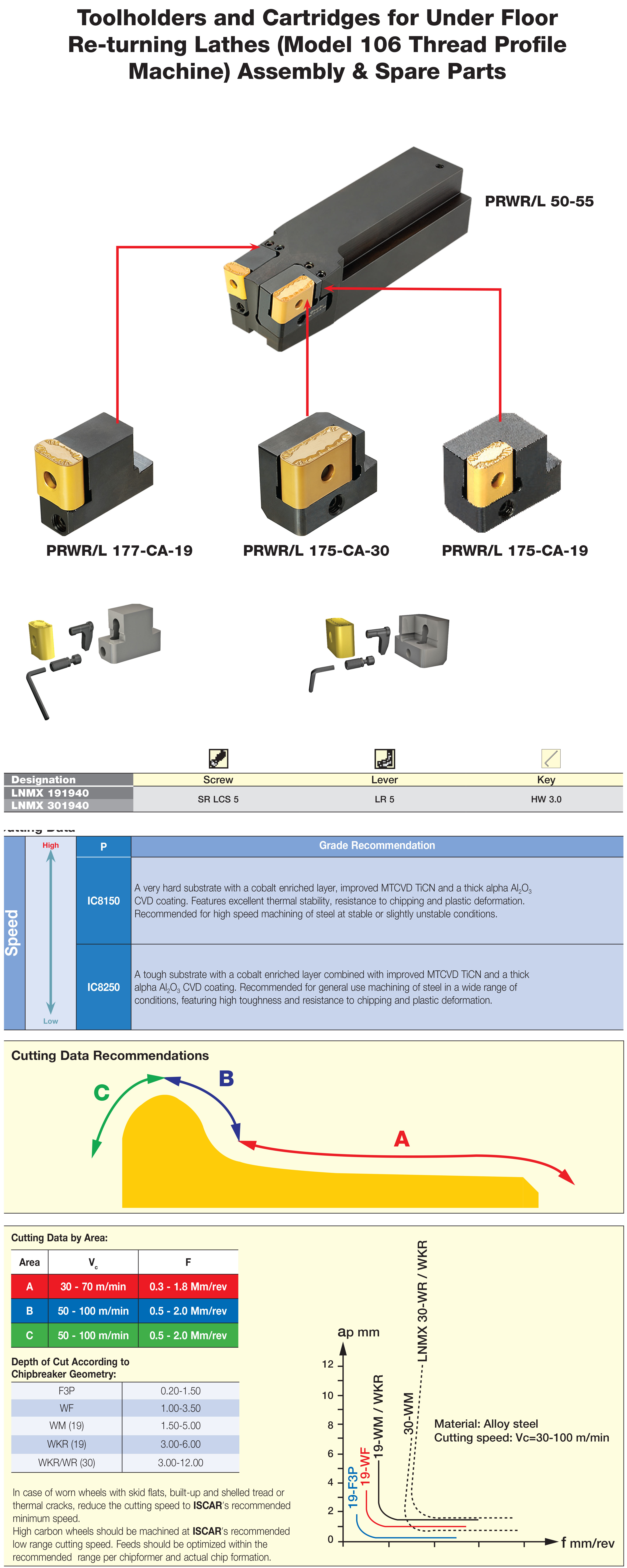

| Family Description | 84° lead toolholders with cartridges for under floor railroad wheel re-turning lathes (model 106 thread profile machine). | Country of Origin | IL |
| Remarks | Cartridges should be ordered separately For tool assembly and cutting recommendations, click on "More Info" |
Shipping Info
Package Weight
7.8830
