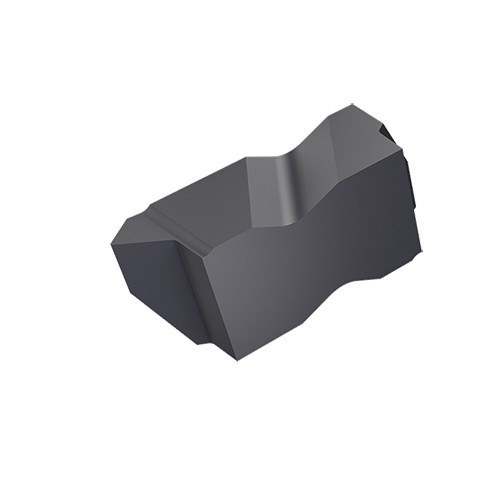

FLTK-3R IC908

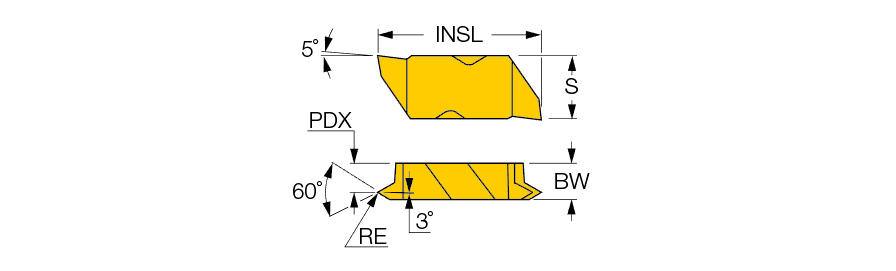

| Thread Standard | THFT | | Thread Pitch Minimum (TPN) | 1 mm |
| Corner Radius (RE) | 0.0031″ | Thread Pitch Maximum (TPX) | 2.5 mm |
| Insert Thickness (S) | 0.344″ | Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC908 | Threads per Inch Maximum (TPIX) | 24 |
| Coating | TiAlN | Threads per Inch Minimum (TPIN) | 9 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | | Thread Form Type (THFT) | VP60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Double-ended precision positive rake threading inserts, for 60° fine pitch such as ISO and UN general threading applications. | Country of Origin | USA |
| Remarks | For 60° V-thread limits, click on More Info DMIN according to related boring bar DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A |
Shipping Info
Package Weight
0.16
