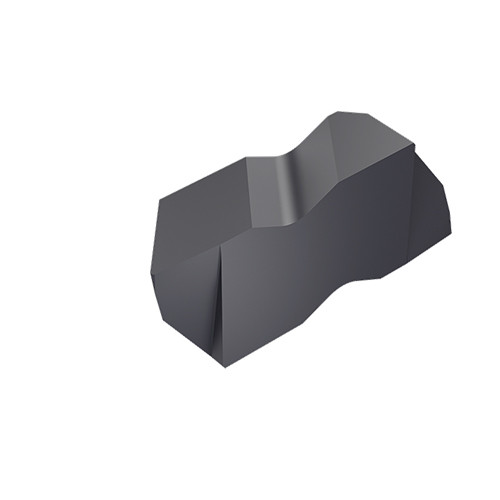

FLTB-2LB IC908
| Thread Standard | THFT | | Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | |

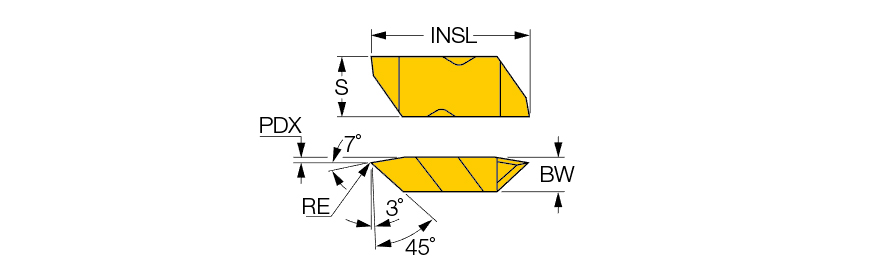

| Corner Radius (RE) | 0.002″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.219″ | Threads per Inch Maximum (TPIX) | 20 |
| Grade | IC908 | Threads per Inch Minimum (TPIN) | 16 |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Direction (HAND) | Left Hand | Thread Form Type (THFT) | ABUT |
Product Features
| Family Description | Double-ended, precision flat top threading inserts for 45° lead | Country of Origin | USA |
| Remarks | For user guide, click on More Info DMIN according to related boring bar Internal tolerance: ANSI/ASME B1.9 - Class 2B External tolerance: ANSI/ASME B1.9 - Class 2A |
