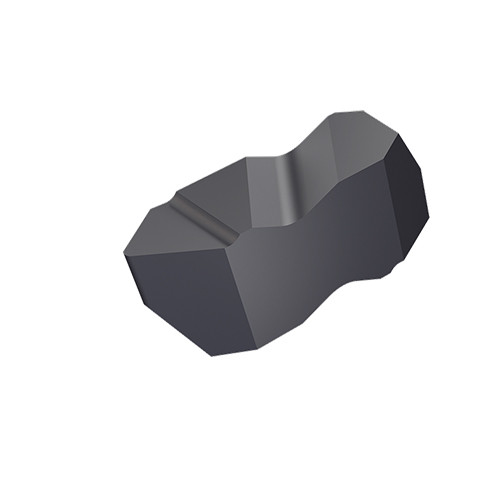

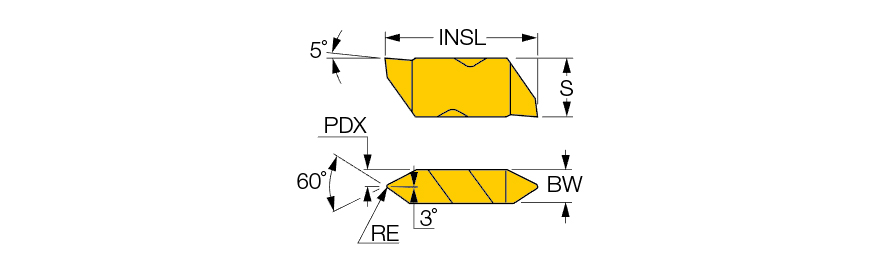

FLJP-3014R12 IC908
| Thread Standard | THFT | | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 12 | Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | |
| Corner Radius (RE) | 0.0126″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.344″ | Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | NJ60 |
Product Features
| Family Description | Double-ended, precision threading inserts with a positive rake | Country of Origin | USA |
| Remarks | DMIN according to related boring bar Internal tolerance: MIL-S-8879C - 3B External tolerance: MIL-S-8879C - 3A |
