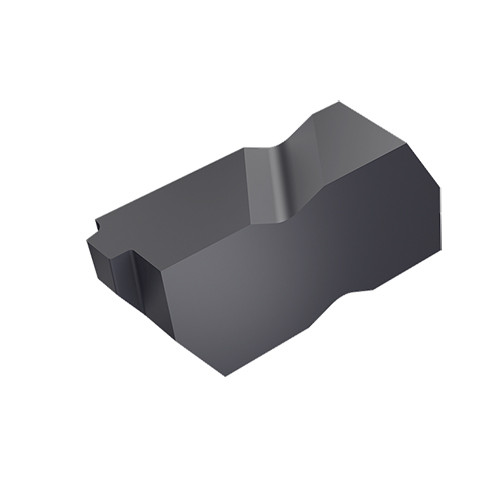

FLDC-4-5B1E IC908
| Thread Standard | THFT | | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 5 | Application | | Threading (Ext.) Groove Turn T | |

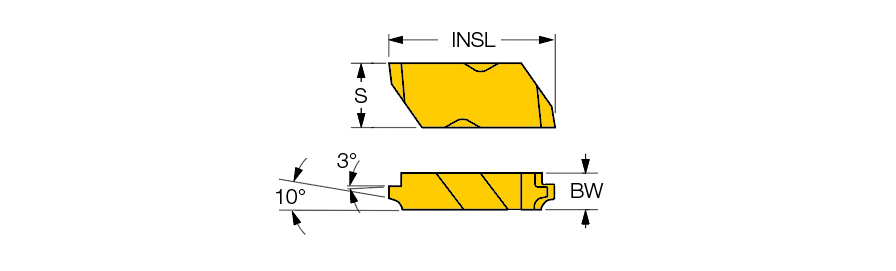

| Insert Thickness (S) | 0.453″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | BUT |
Product Features
| Family Description | Double-ended, precision flat top threading inserts | Country of Origin | USA |
| Remarks | API Spec STD Internal & External tolerance: 5B |
