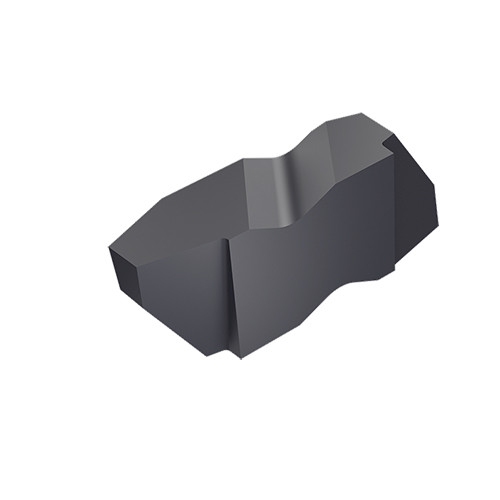

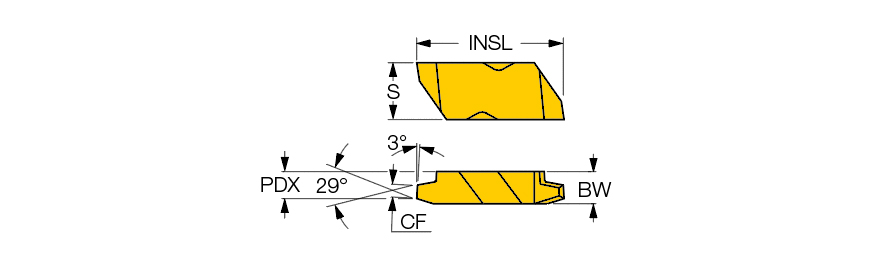

FLA-3L12 IC908
| Thread Standard | THFT | | Cutting Direction (HAND) | Left Hand |
| Threads per Inch (TPI) | 12 | Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | |
| Insert Thickness (S) | 0.344″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | AC29 |
Product Features
| Family Description | Double-ended, precision, flat top threading inserts | Country of Origin | USA |
| Remarks | For ACME thread limits, click on More Info DMIN according to related boring bar Internal & External tolerance: ANSI/ASME B1.5 - 3G |
