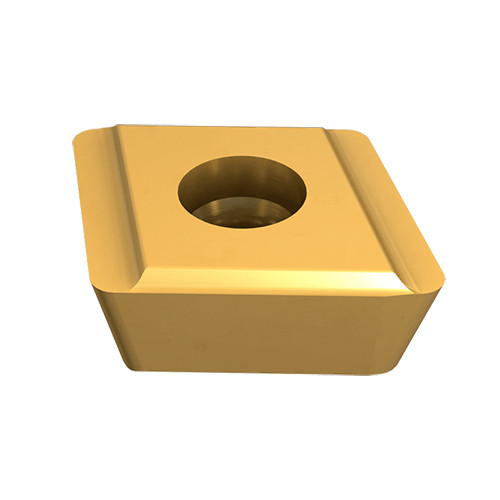

NPHT 110408R-G-P IC948
Drill Insert; 0.394″ Length × 0.433″ Width × 0.157″ Thickness × 0.433″ IC × 0.0315″ Corner Radius ; Carbide ; TiAlCrN ; IC948

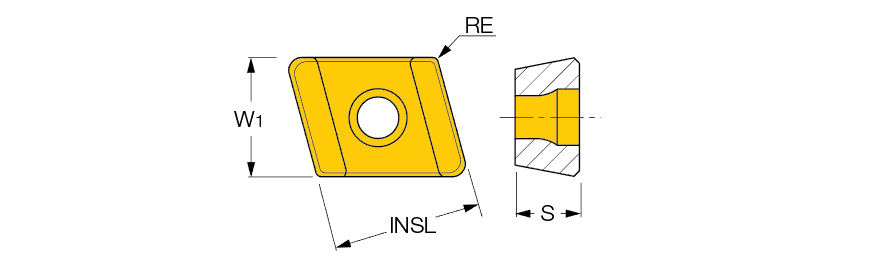

| Cutting Edge Length (L) | 0.394″ | Application | | Deep Drilling | |
| Insert Width (W1) | 0.433″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.157″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.433″ | Tool Type | Gun Drill Inserts |
| Corner Radius (RE) | 0.0315″ | Measurement Type | Inch |
| Coating | TiAlCrN | Cutting Direction (HAND) | Right Hand |
| Grade | IC948 | Body Material | Carbide |
Product Features
| Family Description | Peripheral precision inserts for drilling heads ISD-EF-FB / IDD-EF-FB / ISD-IF-FB. | Country of Origin | Japan |
