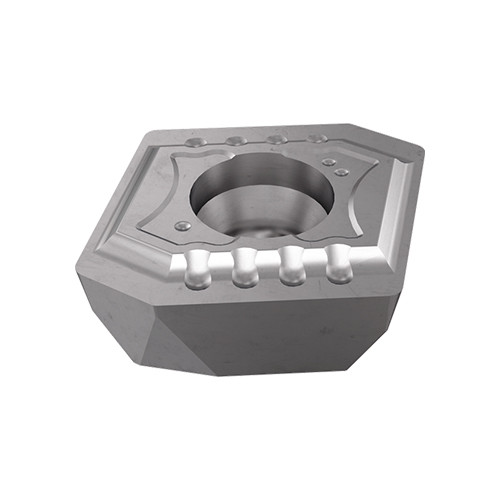

NPMX 080308R-G IC908

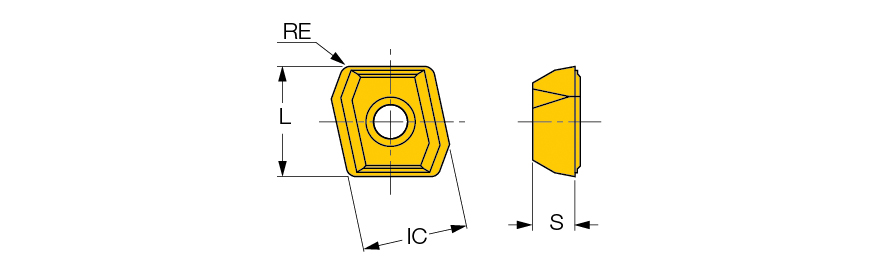

Drill Insert; 0.329″ Length × 0.329″ Width × 1/8″ Thickness × 0.315″ IC × 0.0315″ Corner Radius ; Carbide ; TiAlN ; IC908
| Cutting Edge Length (L) | 0.329″ | Application | | Deep Drilling | |
| Insert Width (W1) | 0.329″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 1/8″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.315″ | Tool Type | Gun Drill Inserts |
| Corner Radius (RE) | 0.0315″ | Measurement Type | Inch |
| Coating | TiAlN | Cutting Direction (HAND) | Right Hand |
| Grade | IC908 | Body Material | Carbide |
Product Features
| Family Description | Inserts for Drilling Heads ISD-EC / IDD-EC / ISD-IC | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.05
