GD-DH 0.875-25D-I1.25-11

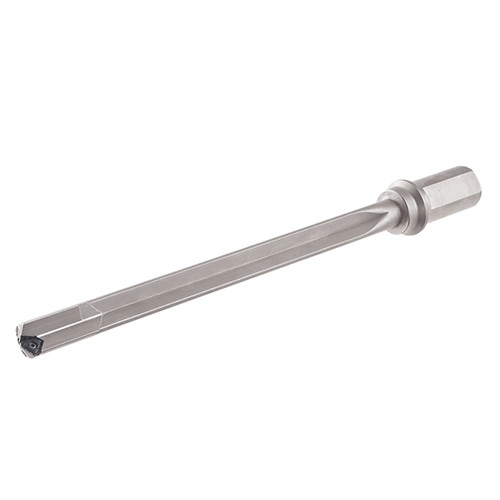

Indexable Insert Drill; 7/8″ Dia. × 22.77″ LU × 1-1/4″ Shank Dia. × 27.024″ OAL ; Steel

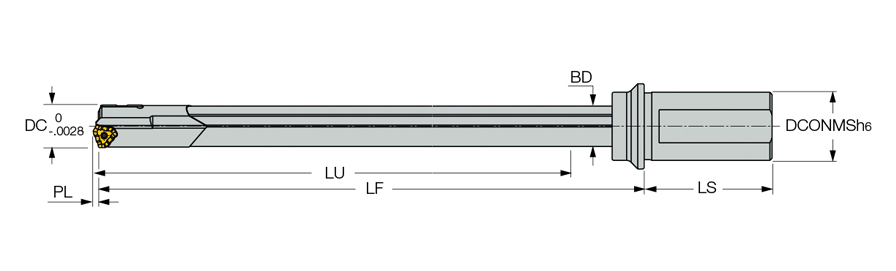

| Cutting Diameter (DC) | 7/8″ | Functional Length (LF) | 24.53″ |
| Usable Length (LU) | 22.77″ | Overall Length (OAL) | 27.024″ |
| Application | | Drilling | Gundrills | | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Tool Type | Deep Hole / Gun Drill | Body Material | Steel |
| Shank Length (LS) | 2.36″ | Decimal Equivalent | 0.875″ |
Product Features
| Family Description | Gundrills carrying the TOGT triangular inserts, featuring 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed. The drills are available in 10, 15 and 25 drilling length to diameter ratios. | Country of Origin | Japan |
| Remarks | For inquiry form, pad and driver selection, click on More Info Note: Gundrills can be supplied with up to 95 length on request. Inserts and guide pads to be ordered separately (not included with the tools). Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole. Enter the guide hole slowly at a speed of 50 - 100 rpm. |
Shipping Info
Package Weight
3.294
