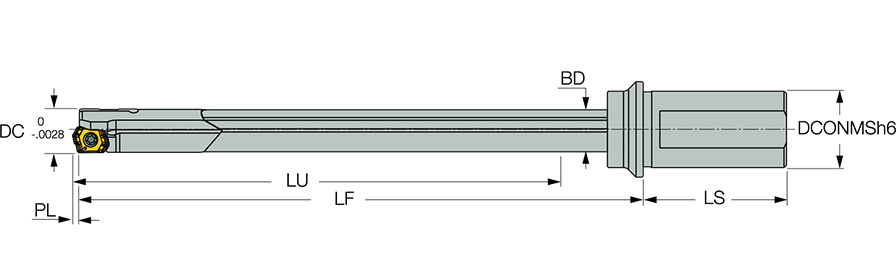

| Cutting Diameter (DC) | 1/2″ | Functional Length (LF) | 13.543″ |
| Usable Length (LU) | 12.87″ | Measurement Type | Inch |
| Application | | Drilling | Gundrills | | Master Insert Identification (MIID) | LOGT 0602.. |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Body Material | Steel |
| Tool Type | Deep Hole / Gun Drill | Decimal Equivalent | 0.5″ |
| Shank Length (LS) | 2.03″ |
Product Features

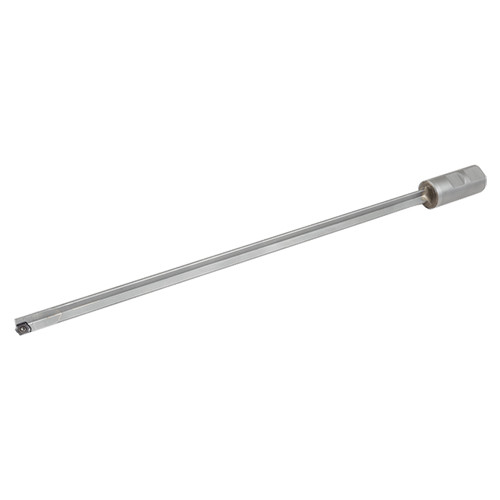

| Family Description | Gundrills carrying the LOGT indexable inserts, with 2 chip splitting cutting edges and a wiper for high hole surface quality. The drills are available in 15, 20 and 25 drilling length to diameter ratios. | Country of Origin | Japan |
| Remarks | For inquiry form, pad and driver selection, click on More Info Note: Gundrills can be supplied with up to 95 length on request. Inserts and guide pads to be ordered separately (not included with the tools). Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole. Enter the guide hole slowly at a speed of 50 - 100 rpm. |
Shipping Info
Package Weight
1.323
