GD-DHL 13.00X800-23

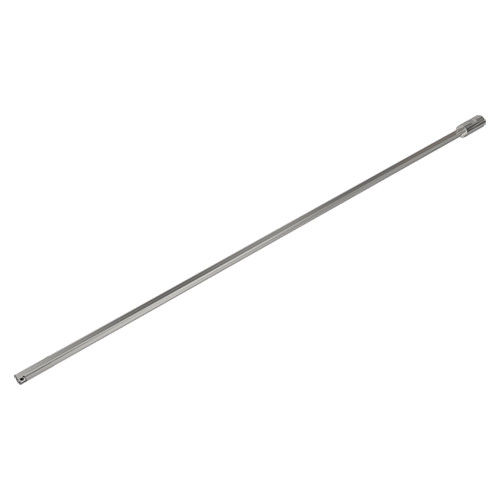

Indexable Insert Drill; 0.512″ Dia. × 28.5748″ LU × 0.984″ Shank Dia. × 31.567″ OAL ; Steel
| Cutting Diameter (DC) | 0.512″ | Overall Length (OAL) | 31.567″ |
| Usable Length (LU) | 28.5748″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Gundrills | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Master Insert Identification (MIID) | LOGT 06.. |
| Tool Type | Deep Hole / Gun Drill | Body Material | Steel |
| Shank Length (LS) | 2.205″ | Decimal Equivalent | 0.512″ |
Product Features
| Family Description | Gundrills carrying the LOGT indexable inserts, with 2 chip splitting cutting edges and a wiper for high hole surface quality and high feed. | Country of Origin | Japan |
| Remarks | For inquiry form, pad and driver selection, click on More Info Note: Gundrills can be supplied with up to 95 length on request. Inserts and guide pads to be ordered separately (not included with the tools). Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole. Enter the guide hole slowly at a speed of 50 - 100 rpm. |
