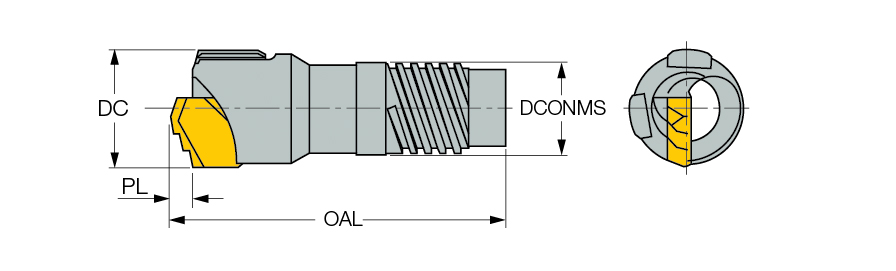

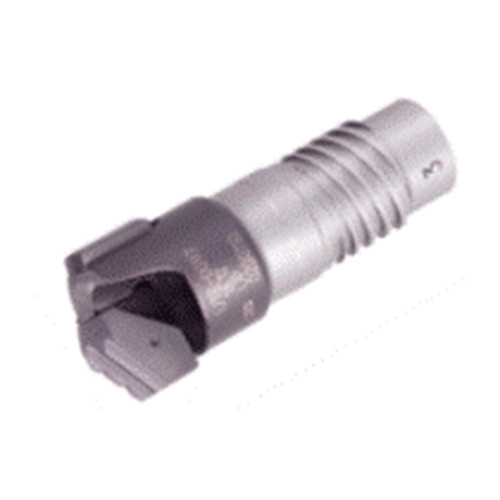

ISD-E1 .496-.535 NOM 0
| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 0.496″ |
| Connection Diameter Machine Side (DCONMS) | 0.378″ | Cutting Diameter Maximum (DCX) | 0.535″ |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Inch |
| Overall Length (OAL) | 1.673″ | Body Material | Steel |
| Connection Thread Size (Ts) | TS-I01 |
Product Features
| Family Description | Deep single tube drills with external 2 and 4 start thread connections and a brazed single tip. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |
| Remarks | The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast Iron. For quotation form and user guide, click on More Info |
