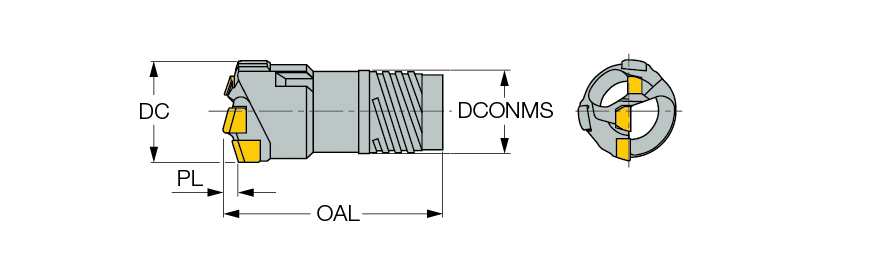

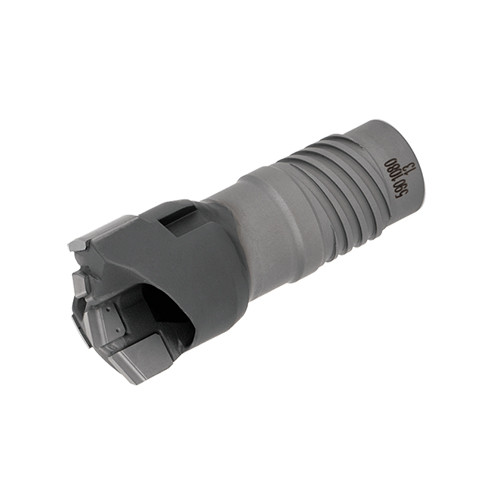

ISD-E3 .949-1.039 NOM 0
| Application | | Deep Drilling | | Connection Thread Size (Ts) | TS-I6 |
| Connection Diameter Machine Side (DCONMS) | 0.768″ | Cutting Diameter Minimum (DCN) | 0.949″ |
| Tool Type | Deep Hole / Gun Drill | Cutting Diameter Maximum (DCX) | 1.039″ |
| Overall Length (OAL) | 2.264″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
Product Features
| Family Description | Deep single tube drills with external 2 and 4 start thread connections and 2 or 3 brazed tips. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |
| Remarks | The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: ISO P, K, M, N materials Ordering example: ISD-E3 1.705 DT-PO For user guide and quotation form, click on More Info |
