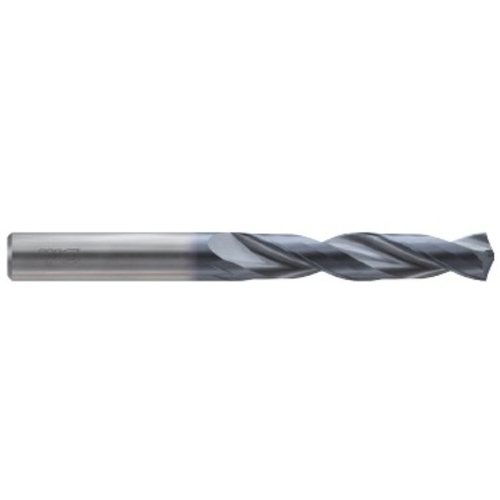

1.8 5XD IC Dream Drill X
SC Drill; 1.8 mm Dia. × 3 mm Shank Dia. × 55 mm OAL × 16 mm LCF ; 140 Degrees ; 5xD ; RCH Coating ; Series DTX424
| Drill Bit Size / Cutting Diameter (DC) | 1.8 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.0709″ | Shape | Round |
| Decimal Equivalent | 0.0709″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1.8 mm | Tool Type | Carbide Dream Drill - 5xD |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | RCH Coating | Series/List # | DTX424 |
| Applicable Material | | Steel | Cast Iron| | Usable Length (LU) | 16 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Length Chip Flute (LCF) | 16 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 55 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.0129″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 16 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.02
