DWLNL 2020K-08

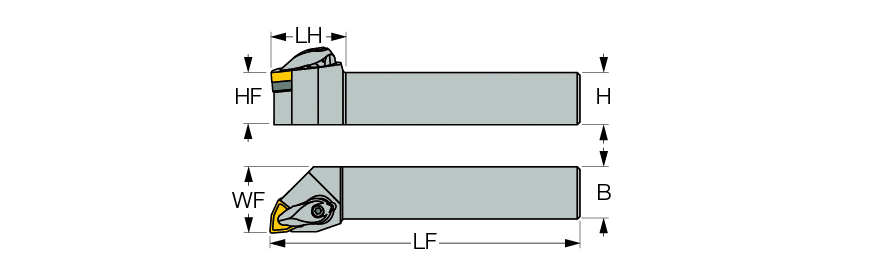

| Shank Height (H) | 20 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 20 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 35 mm | Cutting Position | External |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | WNMG 0804 | Insert Style | 125mm |
| Application | | Ext. 80° Trigon 95° Approach | |
Product Features
| Family Description | R-clamp, external 95° lead tools carrying negative WNMG trigon inserts. | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.012
