SWAPR1010-5 TOOLHOLDER

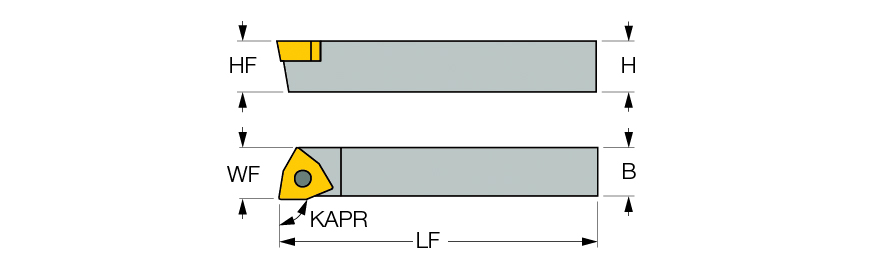

| Shank Height (H) | 10 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Shank Width (B) | 10 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Cutting Position | External |
| Functional Width (WF) | 10.1 mm | End Chamfer Angle (ECA) | 10 Degrees |
| Inscribed Circle Diameter (IC) | 7.94 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | WPEB/X 05.. | Style | SCLCL08-3A |
| Application | | Ext. Positive Trigon 90°Approa | | Insert Style | 150mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
Product Features

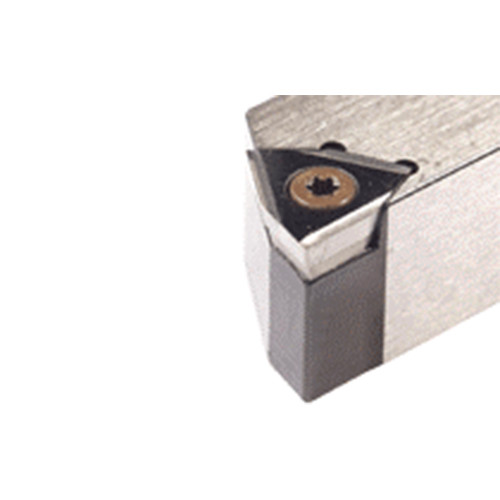

| Family Description | 90° lead angle screw lock tools carrying trigon inserts for Swiss automatic machines. | Country of Origin | SWITZERLAND |
| Remarks | For R.H. tool use -R screw, for L.H. tool use -L screw. |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.295
