TCKNL 2525M-12CH

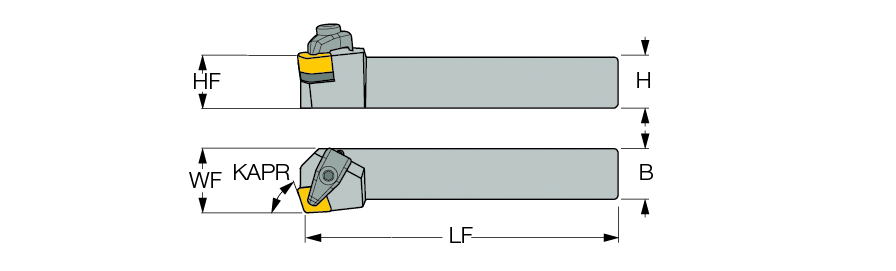

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | CNGX 1207...T |
| Shank Width (B) | 25 mm | Application | | Ext. 100° Diamond 75°Face Appr | |
| Overall Length (OAL) | 153.05 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Cutting Position | External |
| Head Length (LH) | 28 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Style | SCLCL08-3A |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | 75° entering angle tools carrying the 100° corner of CNGX 80° negative rhombic ceramic dimpled inserts for facing | Country of Origin | Korea |
Shipping Info
Package Weight
1.852
