SOF45 D6.0-15-2.00-R18
Indexable Face Mill; 6.67″ Dia. × 2″ Shank Dia. × 2.44″ OAL × 0.197″ LOC ; 15 Inserts ; 45 Degrees

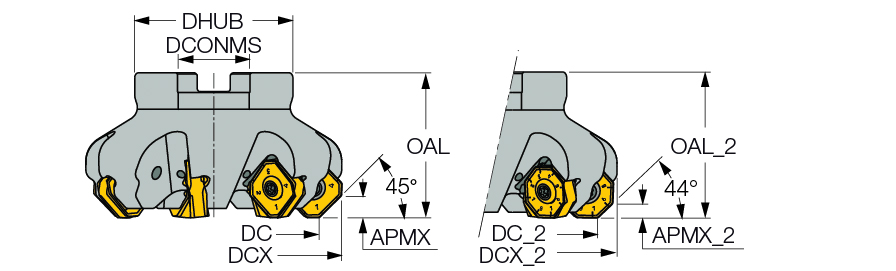

| Cutting Diameter (DC/DCX) | 6.67″ | Master Insert Identification (MIID) | ONMU 0706 |
| Cutting Diameter (DC) | 6″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 6.67″ | Body Material | Steel |
| Cutting Item Count (CICT) | 15 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.315″ | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 4″ | Tool Type | 45° Facemills |
| Arbor Style | B |
Product Features

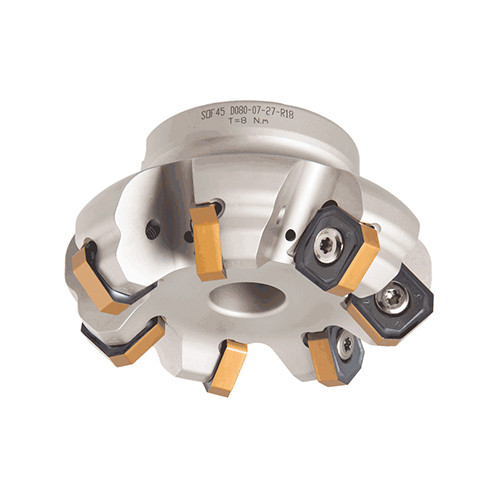

| Family Description | 45° face mills carrying square or octagonal double-sided inserts with 8/16 cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
7.992
