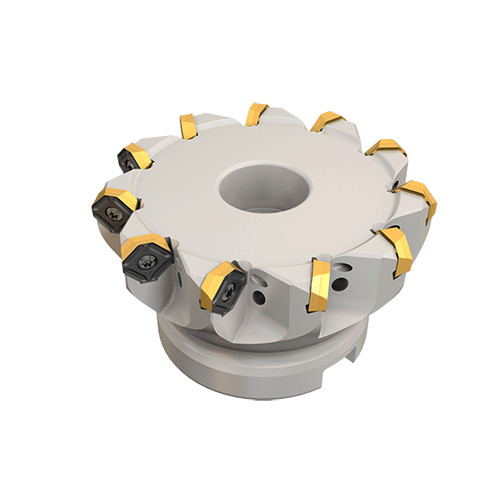

IQ845 FSY D063-07-22-R05
Indexable Face Mill; 68.8 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 2.6 mm LOC ; 7 Inserts ; 50 Degrees

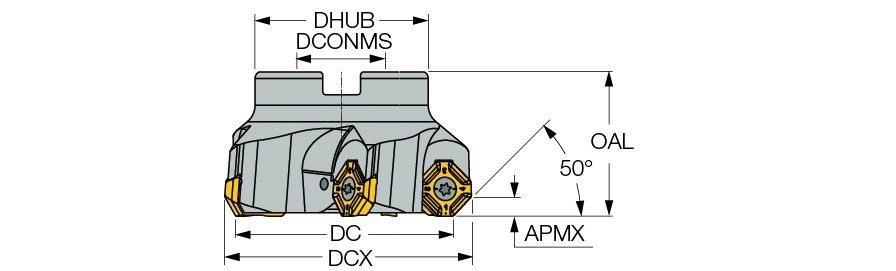

| Cutting Diameter (DC/DCX) | 68.8 mm | Master Insert Identification (MIID) | IQ845 SYHU 0503ADN-ML |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 68.8 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.6 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 50 Degrees |
| Hub Diameter (DHUB) | 48 mm | Tool Type | 45° Facemills |
| Arbor Style | B |
Product Features
| Family Description | 50° face mills carrying screw clamped square Inserts with 8 cutting edges. Feature very rigid dove tail clamping and positive pocket orientation. | Country of Origin | Israel |
Shipping Info
Package Weight
1.563
