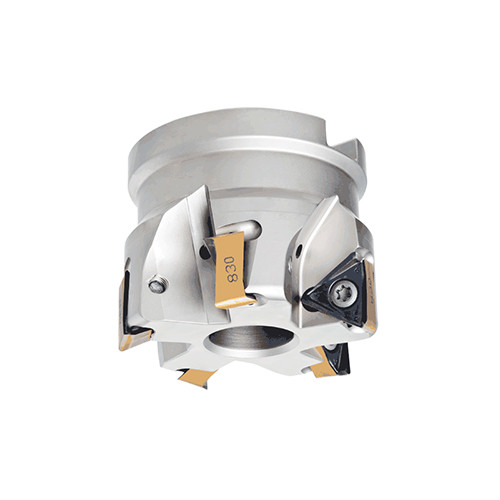

H690 F90AX D050-7-22-10
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 8 mm LOC ; 7 Inserts ; 90 Degrees

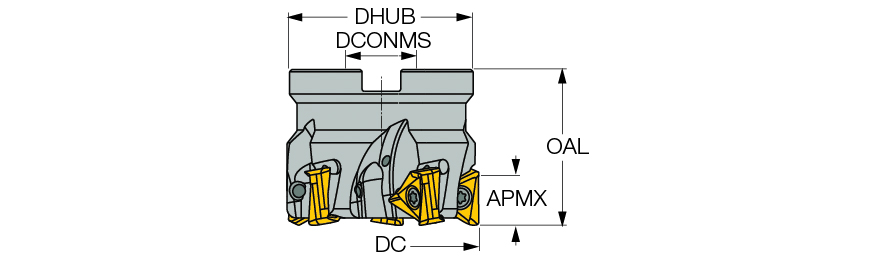

| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | H690 TNKX 100504PNTR |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 8 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 48 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying H690 TNKX 1005.. triangular inserts with 6 helical cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
1.133
