1A7K125R01

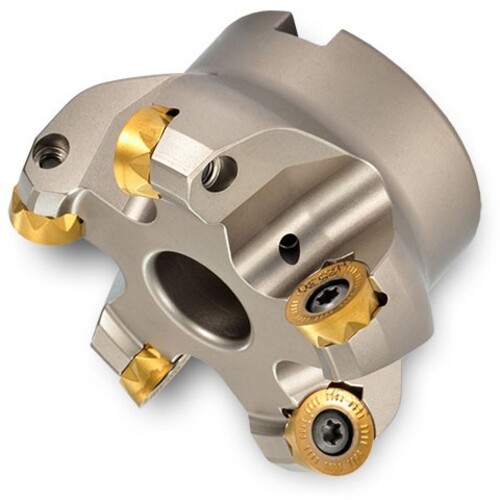

Indexable Face Mill; 4.9 mm Dia. × 1″ Shank Dia. × 2.48 mm OAL × 0.827″ LOC ; 8 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 4.9 mm | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 4.92 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 4.9 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.827″ | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.48 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.48″ | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | 16mm (.630) IC Round Insert Inch & Metric Cutter Bodies | Country of Origin | S.Korea |
