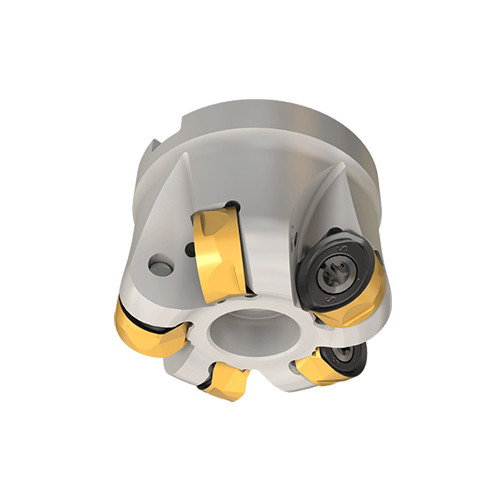

H400 FR D2.50-06-1.00-16
Indexable Face Mill; 2-1/2″ Dia. × 1″ Shank Dia. × 1.65″ OAL × 0.47″ Max Depth ; 6 Inserts

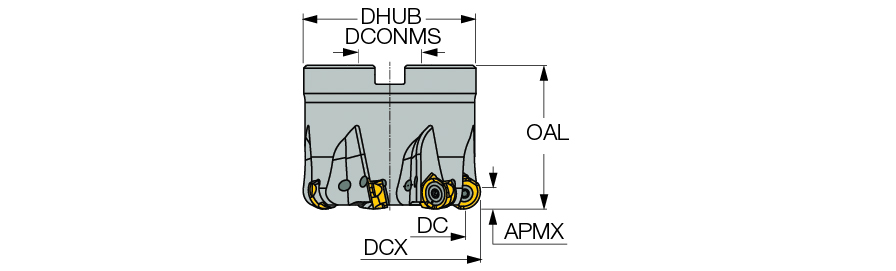

| Cutting Diameter (DC/DCX) | 2-1/2″ | Arbor Style | A |
| Cutting Diameter (DC) | 1.87″ | Master Insert Identification (MIID) | H400 RNHU 1606-AX |
| Cutting Diameter Maximum (DCX) | 2-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.47″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Overall Length (OAL) | 1.65″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.406″ | Tool Type | Round corner cutters |
Product Features
| Family Description | Face mills carrying double-sided inserts with four .315″ radius cutting edges (HELIDO ROUND H400 LINE). | Country of Origin | Israel |
Shipping Info
Package Weight
1.812
