DDJNL 2525M-15

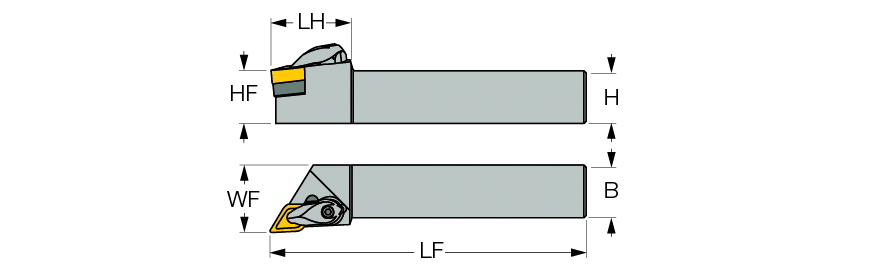

| Shank Height (H) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 25 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 40 mm | Cutting Position | External |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | DNMG 1506 | Insert Style | 150mm |
| Application | | Ext. 55° Diamond 93° Approach | |
Product Features
| Family Description | R-Clamp tools with 93° entering angle carrying 55° negative rhombic inserts | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.691
