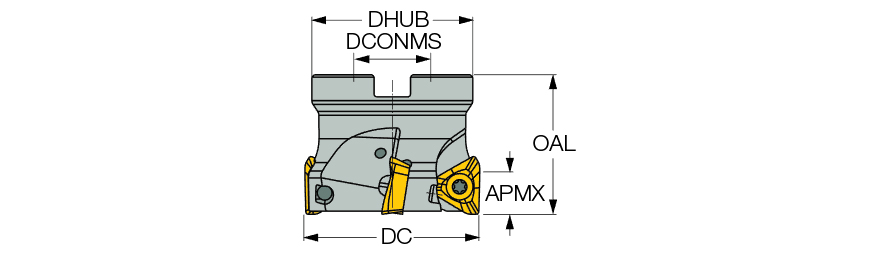

HM390 FTC D1.50-6-.50-07
Indexable Face Mill; 1-1/2″ Dia. × 1/2″ Shank Dia. × 1-1/4″ OAL × 0.2″ LOC ; 6 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Master Insert Identification (MIID) | HM390 TCKT 0703PCTR |
| Cutting Diameter (DC) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1-1/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.38″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying HM390 TCKT 0703 triangular inserts with 3 helical cutting edges. | Country of Origin | Israel |
| Remarks | Insert clamping screw must be lubricated for every index Tightening torque .66 lbfxft |
Shipping Info
Package Weight
0.727
