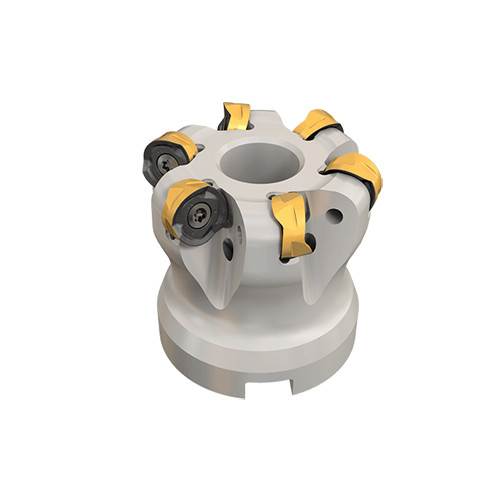

H606 FR D052-06-22-12
Indexable Face Mill; 52 mm Dia. × 22 mm Shank Dia. × 50 mm OAL × 6 mm LOC ; 6 Inserts

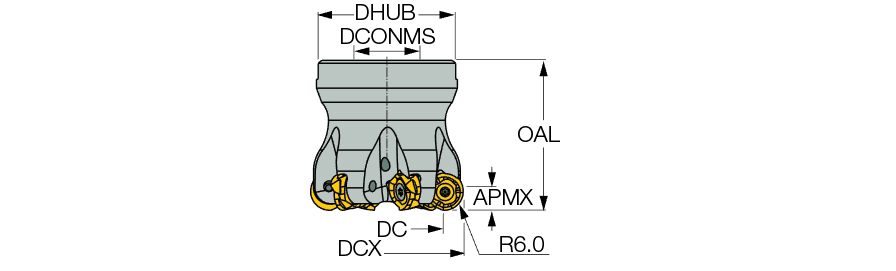

| Cutting Diameter (DC/DCX) | 52 mm | Arbor Style | A |
| Cutting Diameter (DC) | 40 mm | Master Insert Identification (MIID) | H606 RXCU 1206-AXMP |
| Cutting Diameter Maximum (DCX) | 52 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 47 mm | Tool Type | Round corner cutters |
Product Features
| Family Description | Face mills carrying double-sided round inserts with six cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
1.164
