H606 FR D2.50-07-1.00-.50

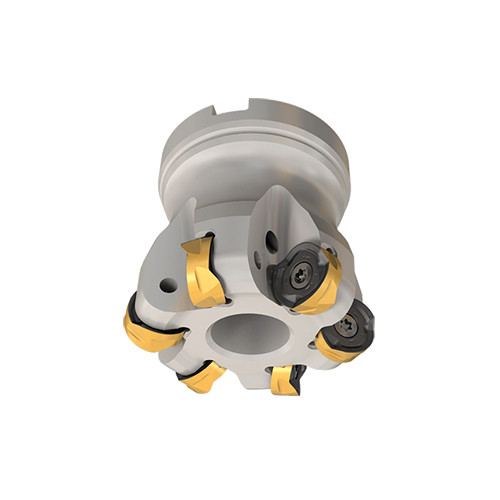

Indexable Face Mill; 2-1/2″ Dia. × 1″ Shank Dia. × 2″ OAL × 1/4″ LOC ; 7 Inserts

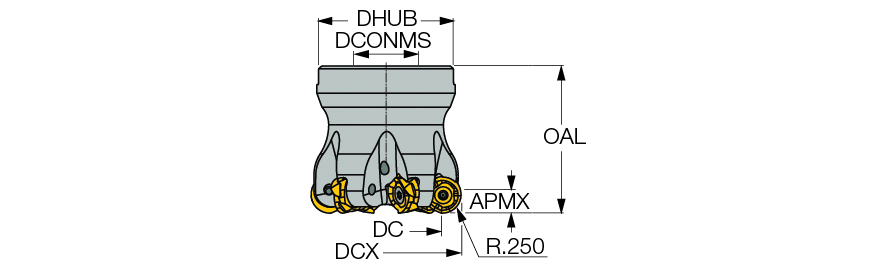

| Cutting Diameter (DC/DCX) | 2-1/2″ | Arbor Style | A |
| Cutting Diameter (DC) | 2″ | Master Insert Identification (MIID) | H606 RXCU 43-AXT |
| Cutting Diameter Maximum (DCX) | 2-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 1/4″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.165″ | Tool Type | Round corner cutters |
Product Features
| Family Description | Face mills carrying double-sided inserts with six .250″ radius cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
1.925
