F90SP D3.0-09-1.00-10

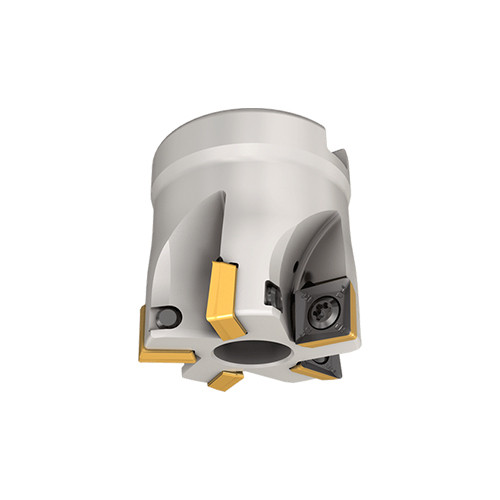

Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 1.76″ OAL × 0.38″ LOC ; 9 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3″ | Master Insert Identification (MIID) | SPMT 10 |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 9 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.38″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Fast Feed Milling | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2-1/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | HELIQUAD face mills carrying S/X/QPMT 1004... inserts | Country of Origin | Israel |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert D is .008 larger when QPMT inserts are used. |
Shipping Info
Package Weight
1.810
