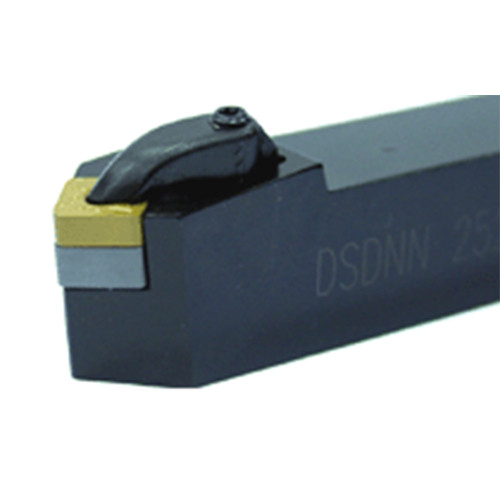

DSDNN 3232P-19

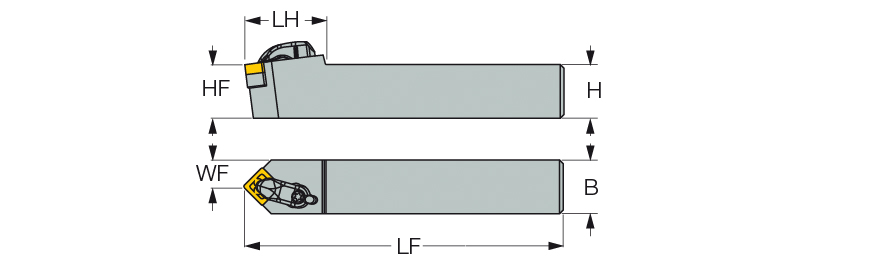

| Shank Height (H) | 32 mm | Rake Angle Axial (GAMP) | -8.5 Degrees |
| Shank Width (B) | 32 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 170 mm | Body Material | Steel |
| Head Length (LH) | 44 mm | Cutting Position | External |
| Functional Width (WF) | 16 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 19.05 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | SNMG 1906 | Insert Style | 170mm |
| Application | | Ext. 90° Square 45° Approach | |
Product Features
| Family Description | 45° entering angle R-Clamp external turning tools carrying ISO negative SNMG inserts | Country of Origin | S.Korea |
Shipping Info
Package Weight
2.992
