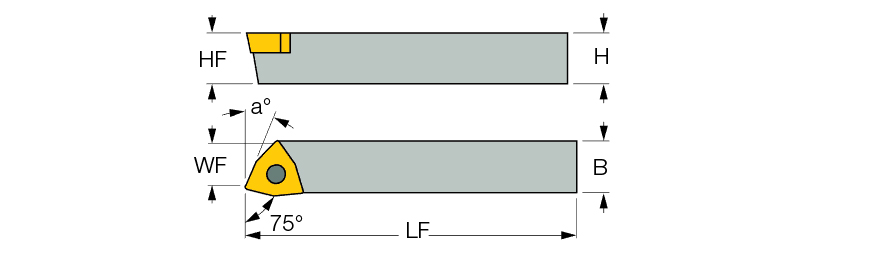

SWBPR 1616-06
| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | Cutting Position | External |
| Functional Length (LF) | 150 mm | End Chamfer Angle (ECA) | 25 Degrees |
| Functional Width (WF) | 16.1 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | WPEB/X 06.. | Insert Style | 150mm |
| Application | | Ext. Positive Trigon 75°Approa | |
Product Features
| Family Description | Screw lock 75° approach angle toolholders carrying trigon inserts, for Swiss automatics. | Country of Origin | Israel |
| Remarks | For R.H. tool use -R screw, for L.H. tool use -L screw. |
Shipping Info
Package Weight
0.666
