EJ5C-01R01

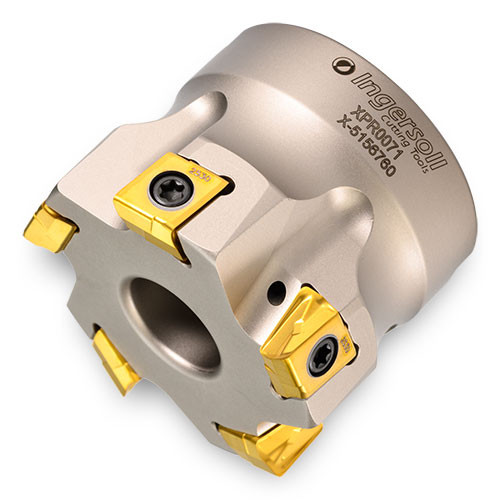

Indexable Face Mill; 1-1/2″ Dia. × 1/2″ Shank Dia. × 1.57″ OAL × 0.385″ LOC ; 5 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Ramping Angle Maximum (RMPX) | 1.08 Degrees |
| Cutting Diameter (DC) | 1-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.385″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1.57″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.001
