FFX4 FD3.00-6-1.00-08

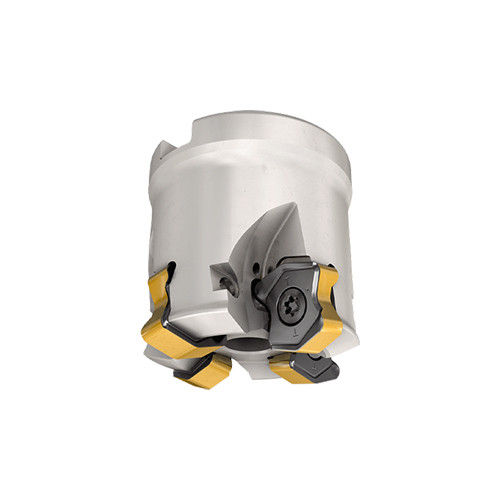

Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 2″ OAL × 0.078″ LOC ; 6 Inserts ; 18 Degrees

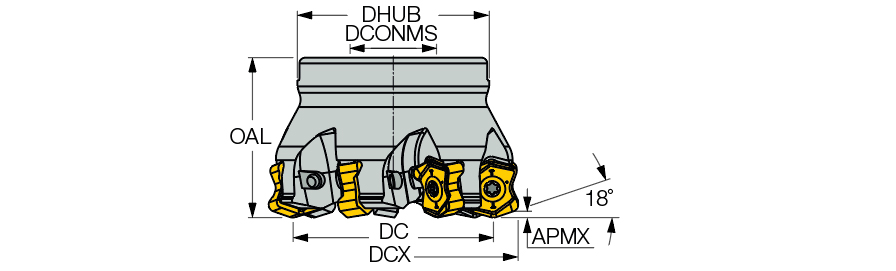

| Cutting Diameter (DC/DCX) | 3″ | Arbor Style | A |
| Cutting Diameter (DC) | 2.386″ | Master Insert Identification (MIID) | FFX4 XNMU 080620T |
| Cutting Diameter Maximum (DCX) | 3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.078″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.252″ | Tool Cutting Edge Angle (KAPR) | 18 Degrees |
Product Features
| Family Description | Face mills carrying double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets and face milling. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC Radius programming for insert XNMU .153 |
Shipping Info
Package Weight
1.84
