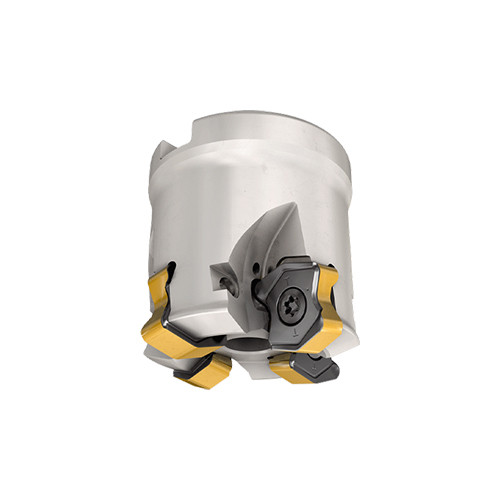

FFX4 FD050-4-22-08
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 50 mm OAL × 2 mm LOC ; 4 Inserts ; 18 Degrees

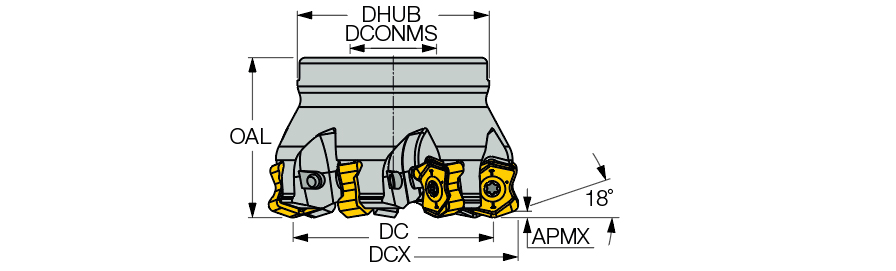

| Cutting Diameter (DC/DCX) | 50 mm | Arbor Style | A |
| Cutting Diameter (DC) | 34.4 mm | Master Insert Identification (MIID) | FFX4 XNMU 080620 |
| Cutting Diameter Maximum (DCX) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 2 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 48 mm | Tool Cutting Edge Angle (KAPR) | 18 Degrees |
Product Features
| Family Description | Face mills carrying double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets and face milling. | Country of Origin | Israel |
| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius programming for insert XNMU 3.9 mm |
Shipping Info
Package Weight
1.283
