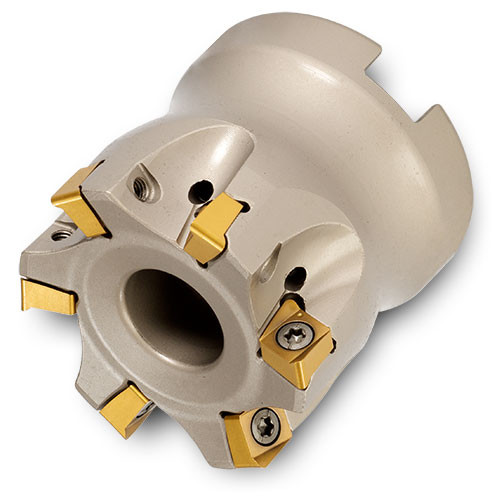

TJ1D063R01
Indexable Face Mill; 2.48″ Dia. × 0.866″ Shank Dia. × 1.575″ OAL × 0.236″ LOC ; 7 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 2.48″ | Arbor Style | A |
| Cutting Diameter (DC) | 2.48″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.236″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.866″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1.575″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | 32-63 Ra finish w/ integrated wiper (WEP). 63-125 Ra finish w/o wiper Backdraft insert option to reduce vibration for long reach applications | Country of Origin | Germany |
Shipping Info
Package Weight
1.047
