HN5D100R00

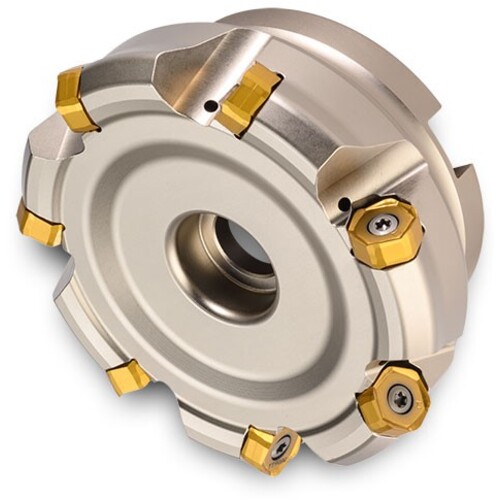

Indexable Face Mill; 4.366″ Dia. × 1.26″ Shank Dia. × 2.165″ OAL × 0.118″ LOC ; 12 Inserts ; 45 Degrees
| Cutting Diameter (DC/DCX) | 4.366″ | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 3.937″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 4.366″ | Body Material | Steel |
| Cutting Item Count (CICT) | 12 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.118″ | Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.165″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 2.48″ | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | Great price-per-edge economy! | Country of Origin | Germany |
Shipping Info
Package Weight
5.846
