TJ5F080R00

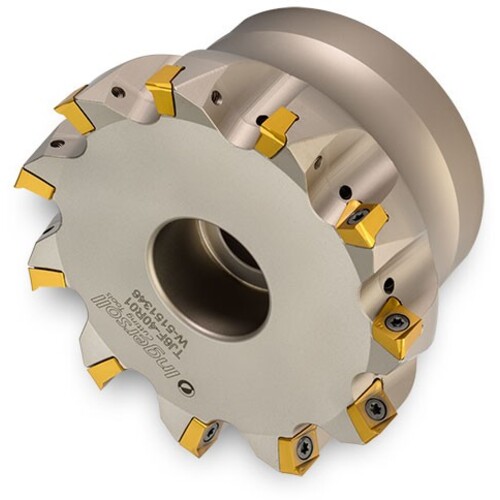

Indexable Face Mill; 3.15″ Dia. × 1.063″ Shank Dia. × 1.968″ OAL × 0.315″ LOC ; 9 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3.15″ | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 3.15″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 9 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.315″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.063″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1.968″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | 32-63 Ra finishes when using insert with integrated wiper (WEP). 63-125 Ra finishes when using insert with no integrated wiper | Country of Origin | Germany |
Shipping Info
Package Weight
2.863
