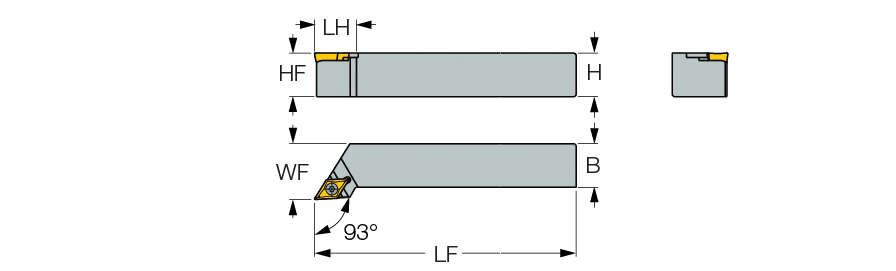

| Shank Height (H) | 20 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 20 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 24 mm | Cutting Position | External |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 11 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | DCMT 13T5-SL | Insert Style | 125mm |
| Application | | Ext. 55° Diamond 93° Approach | |
Product Features

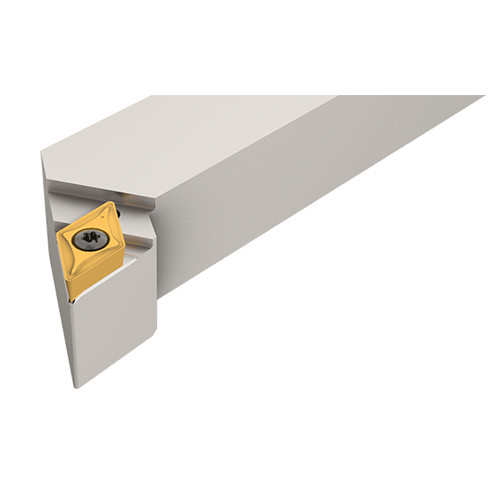

| Family Description | Screw lock tools carrying 55° diamond inserts with 7° clearance angle. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications. | Country of Origin | Israel |
| Remarks | Insert clamping torque 3 Nxm |
Shipping Info
Package Weight
0.882
