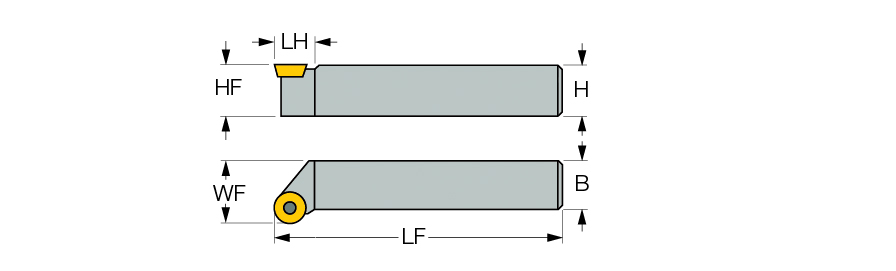

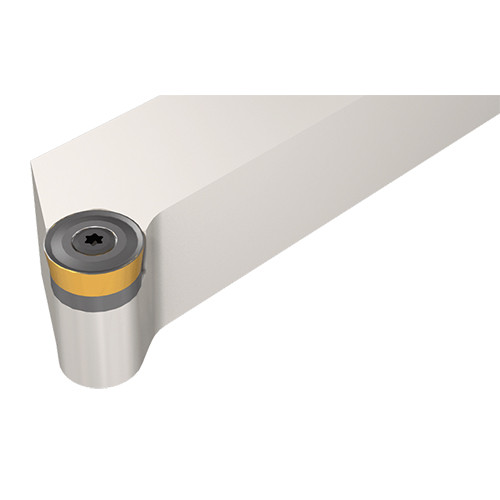

SRGCL 1616H-08
| Shank Height (H) | 16 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 16 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Head Length (LH) | 11 mm | Cutting Position | External |
| Functional Width (WF) | 20 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 8 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | RCMT 0803MO | Insert Style | 100mm |
| Application | | Ext. Round Face & Turn | |
Product Features
| Family Description | Screw lock tools carrying round inserts with 7° clearance angle. | Country of Origin | Israel |
Shipping Info
Package Weight
0.472
