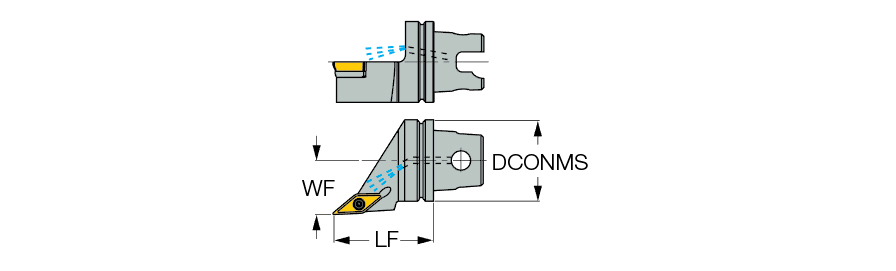

IM40 SVJCL-16
| Shank Height (H) | 1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Width (B) | 1/2″ | Application | | Ext. 35° Diamond 93° Approach | |
| Functional Length (LF) | 1.575″ | Body Material | Steel |
| Functional Width (WF) | 1.063″ | Cutting Position | External |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | End Chamfer Angle (ECA) | 95 Degrees |
| Inscribed Circle Diameter (IC) | 0.375″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | VC.. 1604 | Style | SCLCL08-3A |
Product Features

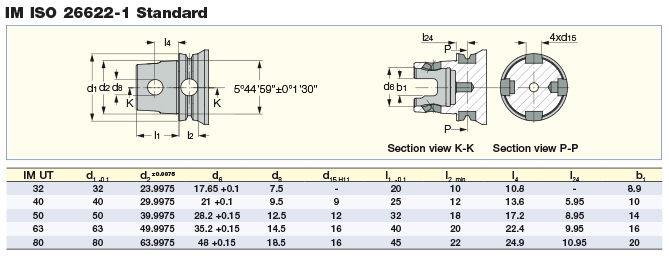

| Family Description | 93° lead angle, screw lock toolholders for 35° rhombic inserts with 7° clearance angle and ISO 26622-1 tapered shank. | Country of Origin | Israel |
| Remarks | Tools with orientation holes in the flange groove can be supplied on request |
Shipping Info
Package Weight
0.573
