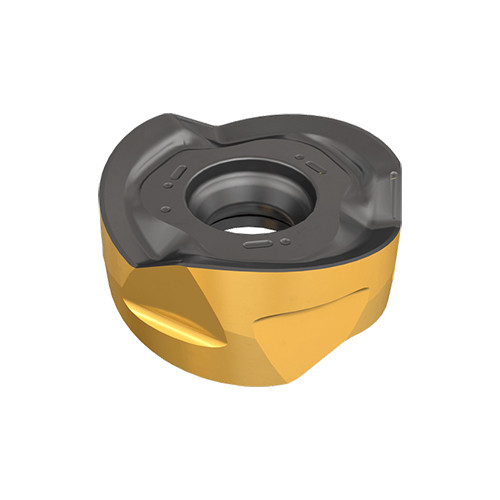

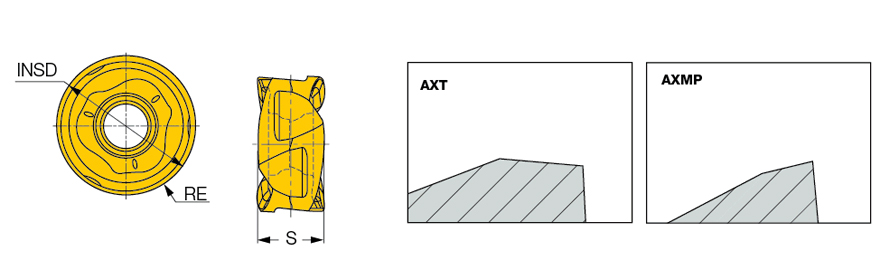

H606 RXCU 43-AXMP IC882
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1/4″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.51″ | Minimum Feed per Tooth (fz(min)) | 0.004 ″/tooth |
| Insert Thickness (S) | 0.236″ | Number of Cutting Edges | 6 |
| Coating | AlTiN+TiAlSiN+TiSiN | Measurement Type | Inch |
| Grade | IC882 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.016 ″/tooth |
Product Features
| Family Description | Double-sided inserts with six .250″ radius edges, for profile milling. | Country of Origin | Israel |
Shipping Info
Package Weight
7.5
