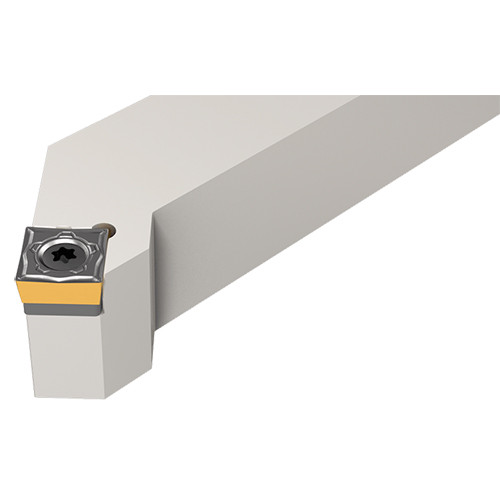

SSSCL 1616H-09
Turning Toolholder; 106 mm OAL × 16 mm Shank Height × 16 mm Shank Width × 18 mm LH ; Left Hand ; Steel

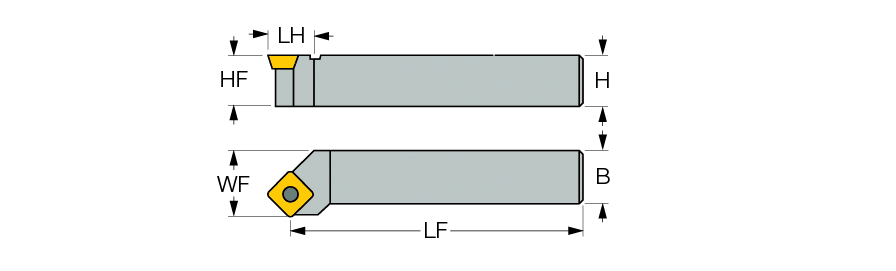

| Shank Height (H) | 16 mm | Application | | Ext. 90°Square 45°Face&Turn Ap | |
| Shank Width (B) | 16 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Overall Length (OAL) | 106 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Head Length (LH) | 18 mm | Cutting Position | External |
| Functional Width (WF) | 20 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | SC.. 09T3 | Insert Style | 100mm |
Product Features
| Family Description | 45° entering angle screw lock tools carrying square inserts with 7° clearance angle for longitudinal and face turning | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.522
