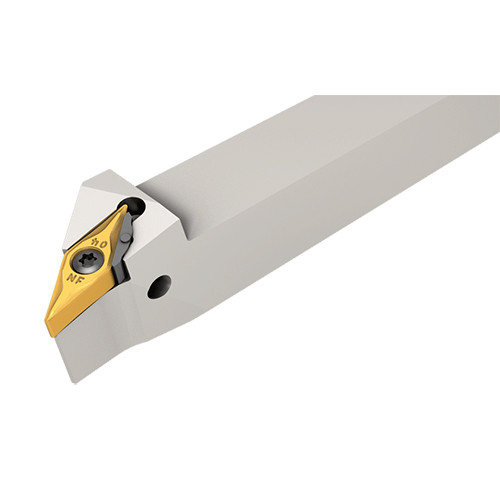

SVANL 1212K-12FS

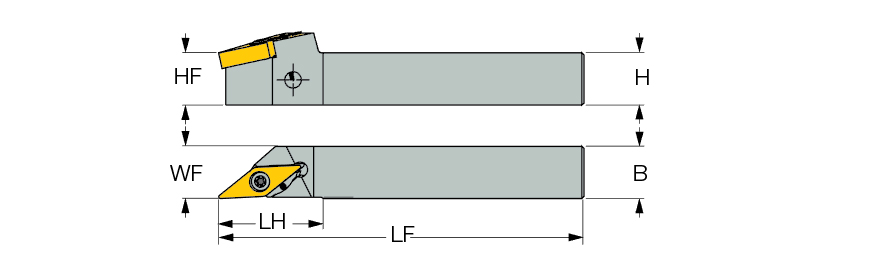

| Shank Height (H) | 12 mm | Rake Angle Axial (GAMP) | -12 Degrees |
| Shank Width (B) | 12 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 25.4 mm | Cutting Position | External |
| Functional Width (WF) | 12.2 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 7.14 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | VN.. 12T.. | Insert Style | 125mm |
| Application | | Ext. 35° Diamond 93° Approach | |
Product Features
| Family Description | Screw-lock holders for negative, 35° inserts with a wedge for high rigidity in profiling applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.355
