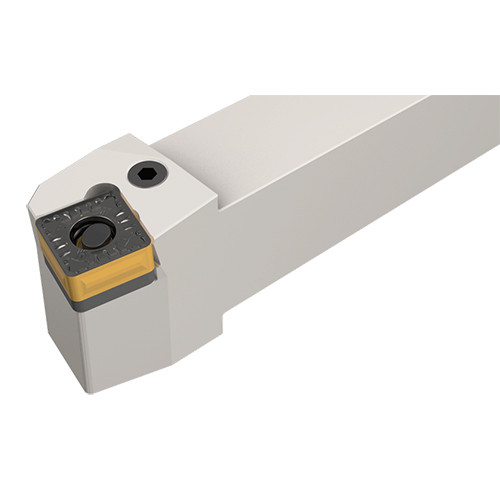

PSBOR 3232P-15-IQ

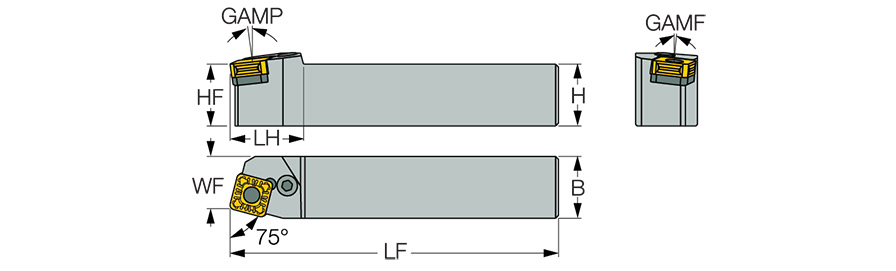

| Shank Height (H) | 32 mm | Rake Angle Axial (GAMP) | -7.5 Degrees |
| Shank Width (B) | 32 mm | Rake Angle Radial (GAMF) | -4.7 Degrees |
| Functional Length (LF) | 170 mm | Body Material | Steel |
| Head Length (LH) | 35 mm | Cutting Position | External |
| Functional Width (WF) | 27 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 15.88 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | SOMG 1506 | Insert Style | 170mm |
| Application | | Ext. 90° Square 75° Approach | |
Product Features
| Family Description | Lever-lock and dovetail pocket rigid clamping tools carrying unique SOMG double-sided 10°negative flank square inserts, for rough turning. | Country of Origin | Israel |
Shipping Info
Package Weight
2.989
