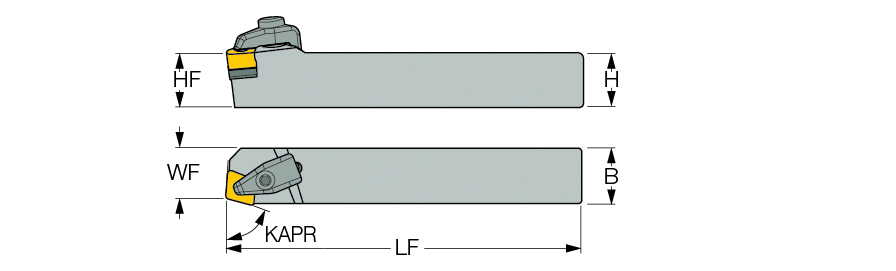

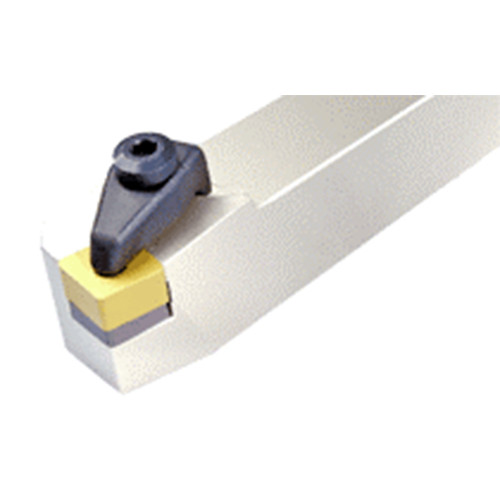

TCBNL 2525M-12CH
| Shank Height (H) | 25 mm | Application | | Ext. 100° Diamond 75° Approach | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Cutting Position | External |
| Functional Width (WF) | 22 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | CNGX 1207...T |
Product Features
| Family Description | 75° entering angle toolholders using the 100° corner of CNGX 80° negative rhombic ceramic dimpled inserts | Country of Origin | Korea |
Shipping Info
Package Weight
1.764
