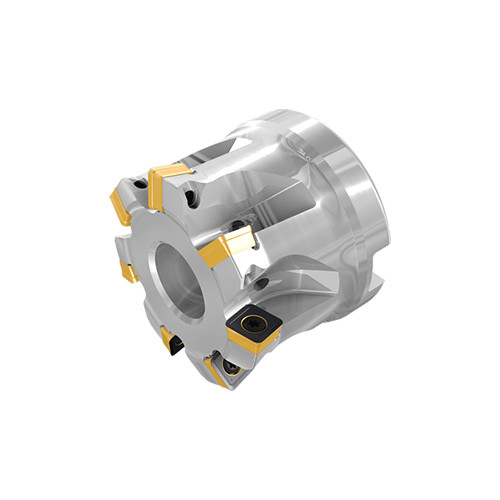

FFQ4 D2.00-07-0.75-09
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1.6″ OAL × 0.047″ LOC ; 7 Inserts ; 12 Degrees

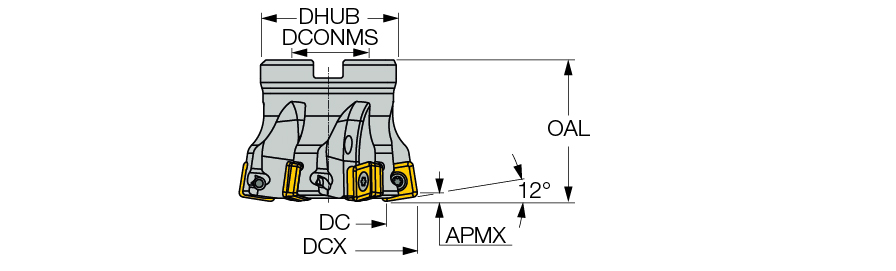

| Cutting Diameter (DC/DCX) | 2″ | Arbor Style | A |
| Cutting Diameter (DC) | 1.439″ | Master Insert Identification (MIID) | FFQ4 SOMT 090412T |
| Cutting Diameter Maximum (DCX) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.047″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Overall Length (OAL) | 1.6″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.85″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
Product Features
| Family Description | Fast feed face mills carrying single-sided Inserts with 4 cutting edges | Country of Origin | Israel |
| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT .094, for insert SOMW .118 When mounting insert SOMW, APMX=.039 For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info |
Shipping Info
Package Weight
1.083
