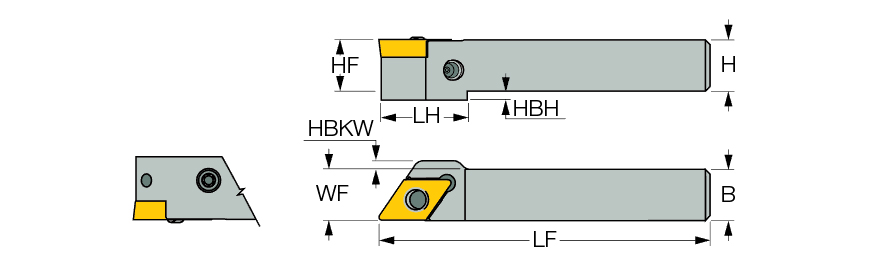

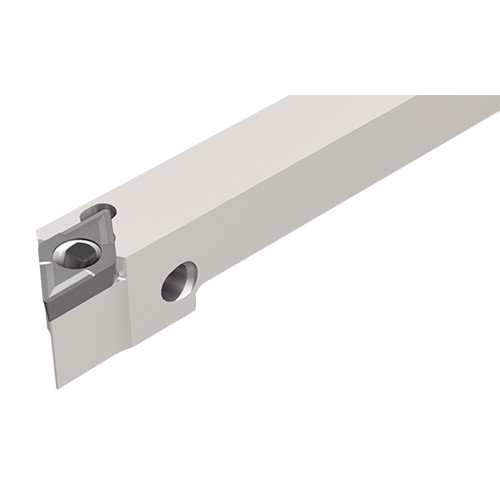

PDACR 1616M-11S
| Shank Height (H) | 16 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 16 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Functional Width (WF) | 16 mm | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 9.52 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | DC..11T3 | Style | SCLCL08-3A |
| Application | | Ext. 55° Diamond 91° Approach | | Insert Style | 150mm |
Product Features
| Family Description | Side lever lock tools carrying 55° positive rhombic inserts for Swiss automatic machines. | Country of Origin | SWITZERLAND |
| Remarks | The clamping screw may by transferred to the opposite side if needed |
Shipping Info
Package Weight
0.685
